Overview:
ART19 is certified to support Claritas (formerly Barometric) measurement URLs. Claritas can support both our Encrypted Device IP macro or you can choose to pass the IP address of your podcast listeners in the X-Forwarded-For and X-Device-IP headers. If using the encrypted IP macro, a decryption key must be provided to Claritas. The decryption key is located in your Ad Ops profile under Settings > Configuration. If using the X-Forwarded-For and X-Device-IP headers, these must be enabled by reaching out to support@art19.com.
As with all 3rd party measurement URL’s, Claritas measurement can be added at both the campaign or ad level. A measurement URL configured at the campaign level will fire for every ad associated with the campaign. This saves you time if you have multiple pieces of creative requiring the same measurement URL.
Step 1: Claritas Campaign Level Measurement

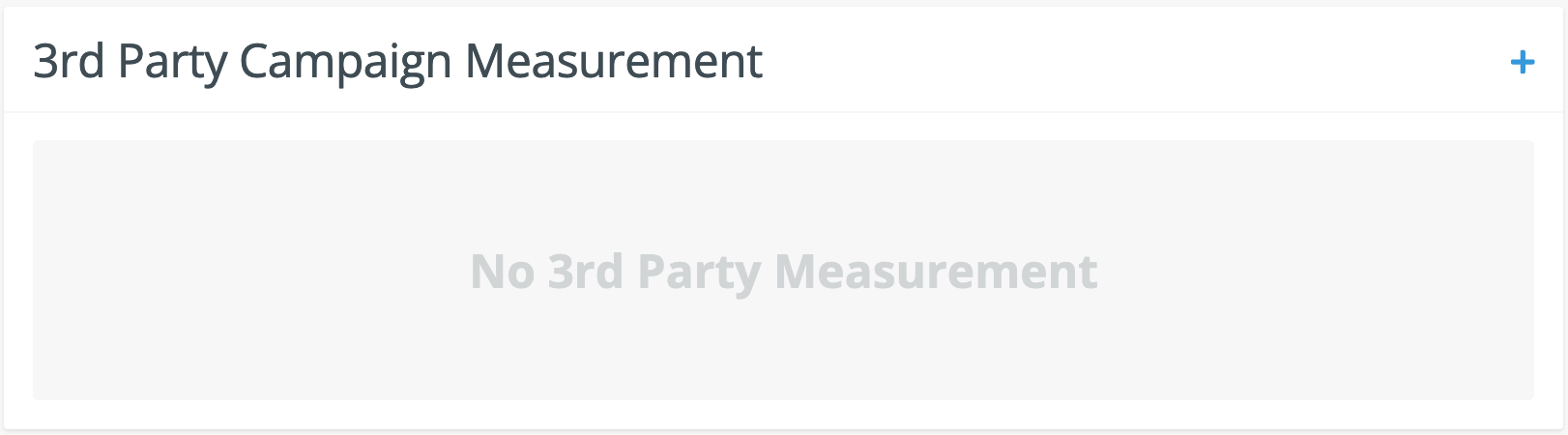

Navigate to the campaign details page and scroll to the bottom to find 3rd Party Campaign Measurement.

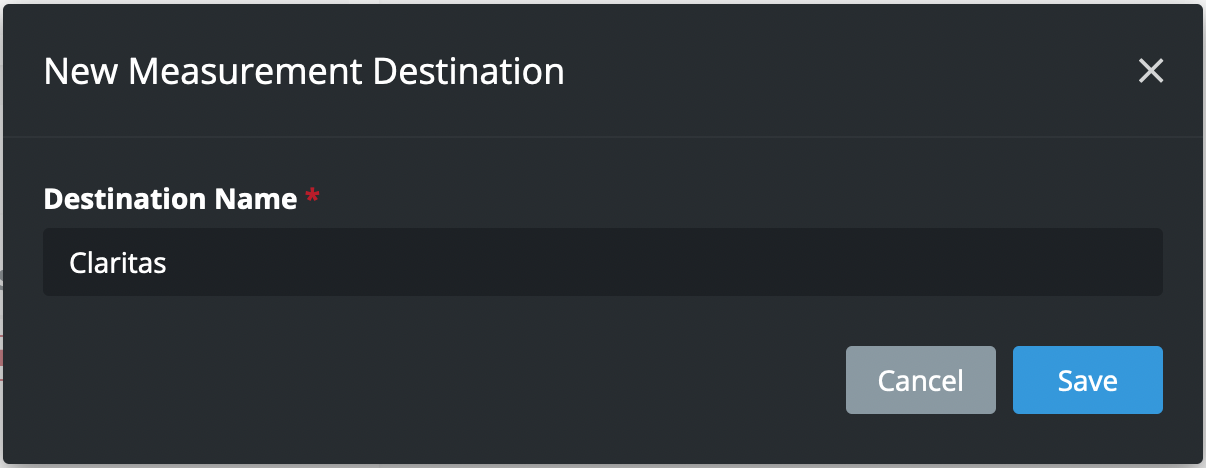

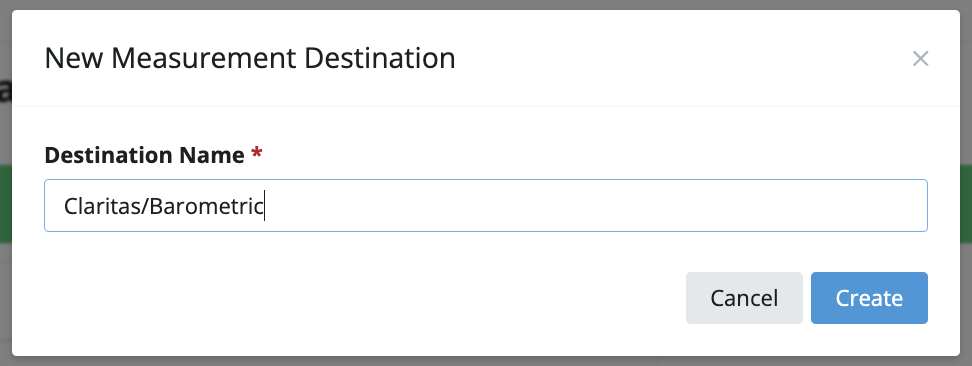

To add a destination, press the blue plus button and provide a name for your new Measurement Destination. Then click save. Please note, a Measurement Destination can be called whatever you choose but we recommend using a name that includes the 3rd party vendor.
Step 2: Apply Measurement URL

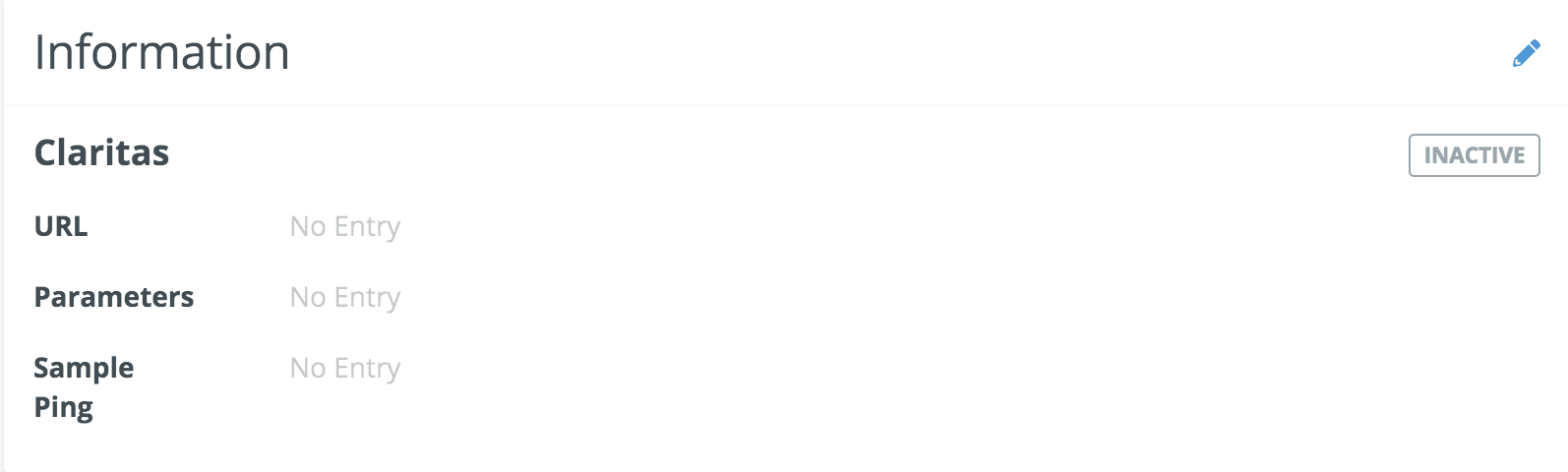

Click on the pencil icon on the top-right of the card to populate the remainder of your measurement destination information.
A: If using the Encrypted IP Macro

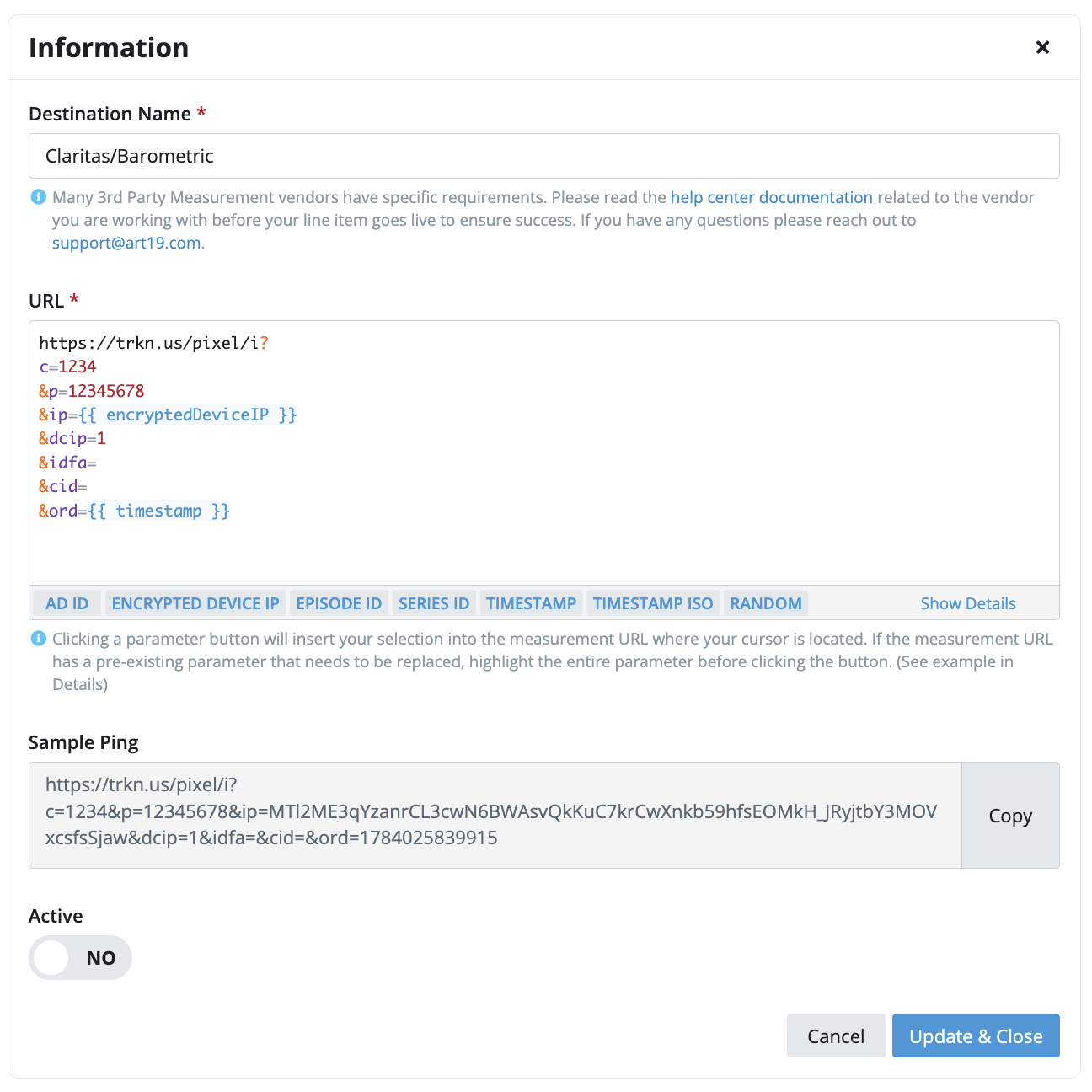

A typical Claritas tag using the Encrypted IP Macro will look like this:
https://trkn.us/pixel/i?c=1234&p=12345678&ip={{ encryptedDeviceIP }}&dcip=1&idfa=&cid=&ord={{ timestamp }}
This will come pre-populated with all macros in the proper syntax from Claritas. Simply copy the URL provided as is into the URL field, set to Active and hit Update & Close.
B: If IP address headers are enabled

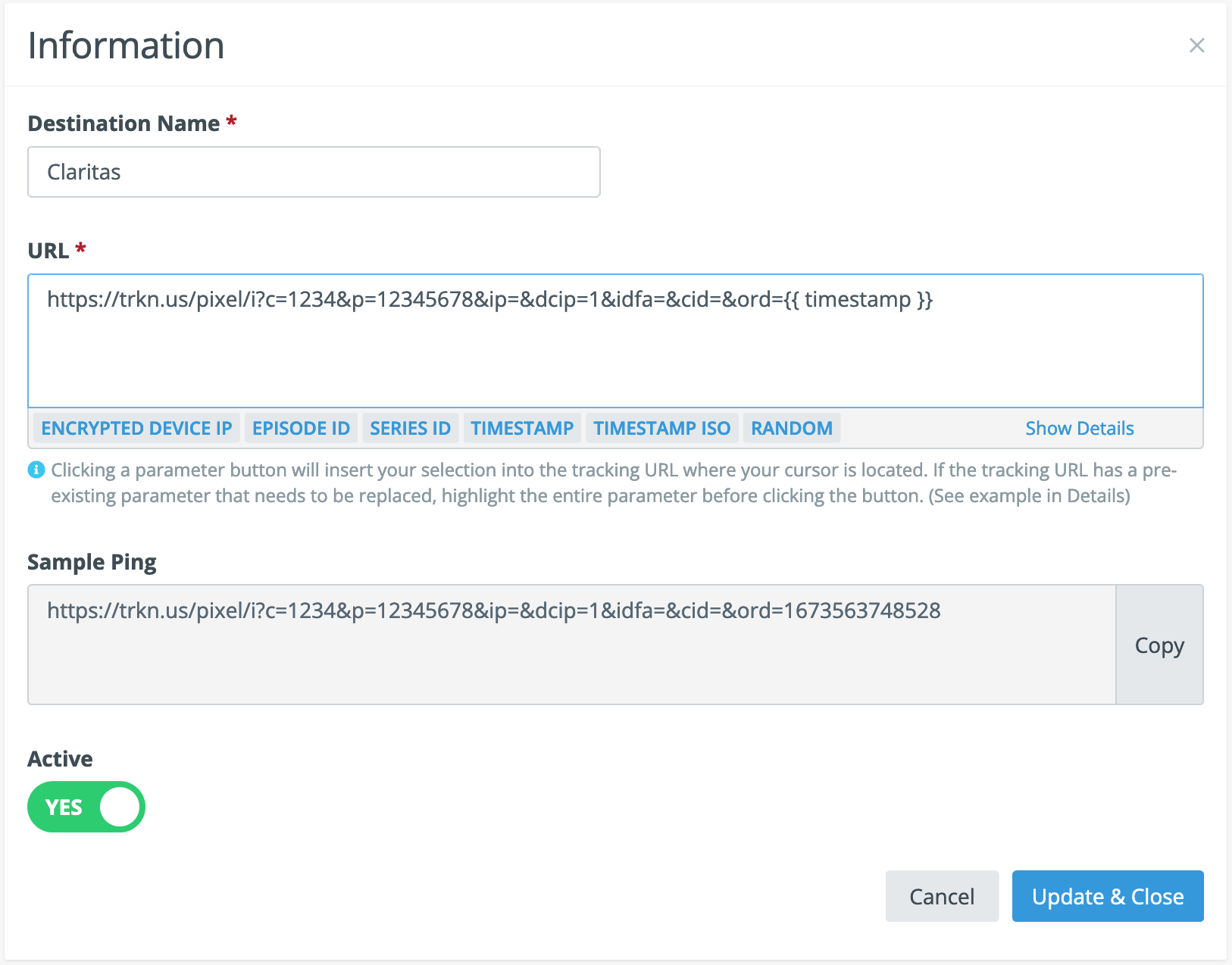

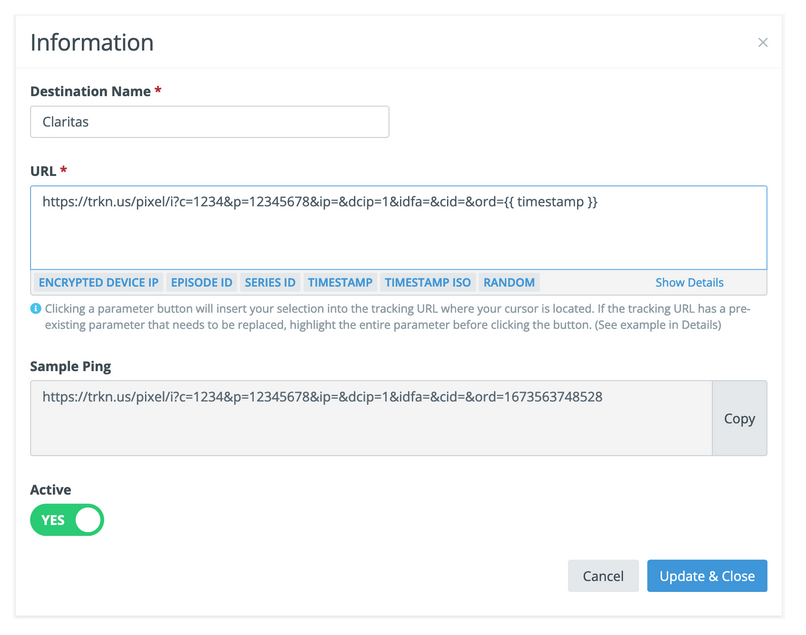

A typical Claritas tag configured for receiving IP address in the X-Forwarded-For and X-Device-IP headers will look like this:
https://trkn.us/pixel/i?c=1234&p=12345678&ip=&dcip=1&idfa=&cid=&ord={{ timestamp }}
This will come prepopulated with all macros in the proper syntax from Claritas. Simply copy the URL provided as is into the URL field, set to Active and hit Update & Close.
